Purpose
Provide a program that interfaces to an analog to digital converter through the SPI port. This example uses the LTC1298, a 12 bit two channel ADC.
Description
This program initializes thirteen i⁄o lines of the U401⁄U421⁄U451 to be outputs, and enables the SPI subsystem. The LTC1298, a 12-bit serial (SPI) A⁄D device, is connected to the MISO, MOSI, and CLK lines, as well as one of the output lines. The program selects the ADC device, selects channel 0, and reads the converted analog value. This is repeated for channel 1.
Screen Shot

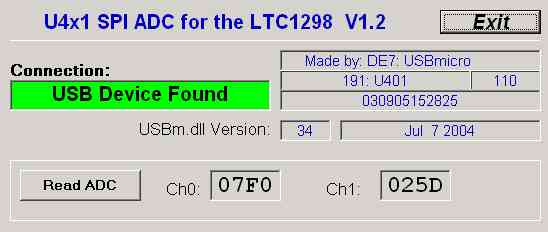

Below is the application screen reading some A⁄D values.
Hardware

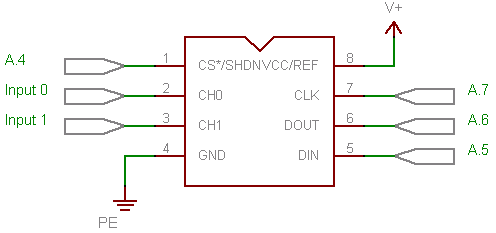

The datasheet for the LTC1298 was followed for connection to the U4x1 device. Bypass capacitors are not shown in the schematic.
Pin 1 of the LTC1298 is the active low chip select and is controlled by port A.4. MOSI of the U4x1 (A.5) connects to the A⁄D “D in” to send a command to the A⁄D, while MISO (A.6) reads the data from “D out”. The SPI clock (A.7) connects to pin 7, the LTC1298’s clock line.
SPI Devices
Example SPI devices:
ADC
Analog Devices (www.analog.com)
AD7715, AD7811, AD7812, AD7816, AD7817, AD7818, AD7853, AD7858
Burr Brown (www.burr-brown.com)
ADS1210, ADS1211, ADS1212, ADS1213, ADS1286, ADS7812, ADS7813, ADS7818, ADS7834, ADS7835
Cirrus (www.cirrus.com)
CS5531, CS5533, CS5532, CS5534
Linear Technology (www.linear-tech.com)
LTC1091, LTC1092, LTC1093, LTC1094, LTC1096, LTC1098, LTC1197, LTC1199, LTC1285, LTC1288, LTC1287, LTC1289, LTC1290, LTC1291, LTC1286, LTC1298, LTC1404, LTC1418, LTC1594, LTC1598, LTC2400, LTC2408, LTC2410, LTC2420
Maxim (www.maxim-ic.com)
MAX144, MAX145, MAX146, MAX147, MAX157, MAX159, MAX186, MAX188, MAX1084, MAX1085, MAX1106, MAX1107, MAX1110, MAX1111, MAX1112, MAX1113, MAX1202, MAX1203, MAX1204, MAX1240, MAX1241, MAX1242, MAX1243, MAX1270, MAX1271, MAX1400, MAX1401, MAX1402, MAX1403
Microchip (www.microchip.com)
MCP3001, MCP3002, MCP3004, MCP3008, MCP3201, MCP3202, MCP3204, MCP3208
Texas Instruments (www.ti.com)
TLV1504, TLV1508, TLV1544, TLV1570, TLV1572, TLC1514, TLC1518, TLV2541, TLV2542, TLV2545, TLV2544, TLV2548, TLC2554, TLC2558,
EEPROM⁄Serial Non-volatile
Atmel (www.atmel.com)
AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25P1024, AT25HP256, AT45D011, AT45D021, AT45DB021, AT45DB041, AT45D081, AT45DB161
Fairchild (www.fairchildsemi.com)
NM25C020, NM25C040, NM25C041, NM25C160, NM25C640, NM93C06, NM93C56, NM93C66, NM93C46, NM93C56, NM93C46A, NM93C46A, NM93S46, NM93S56
Microchip (www.microchip.com)
25AA040, 25LC040, 25C040, 25AA080, 25LC080, 25C080, 25AA160, 25LC160, 25C160, 25LC320, 25C320, 25AA640, 25LC640
NexFlash (www.nexflash.com)
NX25F011A, NX25F041A, NX25F080A, NX25M
RAMTRON (www.ramtron.com)
FM25L256, FM25W256, FM25CL64, FM25640, FM25CL160, FM25CL04, FM25040
SanDisk (www.sandisk.com)
SDMB-4, SDMB-8, SDMB-16, SDMB-32
SGS Thompson (us.st.com)
M35080, M93C86, M93C76, M93C66, M93C56, M93C46, M93C06, M93S46, M93S56, M93S66, M95010, M95020, M95040, M95080, M95160, M95320, M95640, M95128, M95256, ST95010, ST95020, ST95040
Xicor (www.xicor.com )
X25020, X25040, X25160, X25F008, X25F016, X25F032, X25F064, X25F128
Digital Pots
Analog Devices (www.analog.com)
AD8400, AD8402, AD8403
Dallas (www.dalsemi.com )
DS1267, DS1844
